Tipper Dump Truck 25-40Tons hydraulic cylinder for Mining and Municipal works
Description:
Tipper Dump Truck 25-40Tons hydraulic cylinder for Mining and Municipal works
Be comprehensive with Euro2 and Euro3 engine equipped.
Driving type: 4×2, 4×4 6×2, 6×6 ,6×4, 8×4 and so on. Power range: 266HP - 420HP.
It is super art in domestic and abroad auto field, full expression of heavy duty truck concept. Delicate design, excellent technology, which will dazzle you as groundbreaking works
Top configration: Discal brakes +EVB,ABS+ASR+EBL+TPM,More Powerful electronic management system
High Level Comfortable:Cabin 4 point full -floating air suspension , adjustable steering wheel with various heightsand angles.air suspension seat, Cruise Constant Speed System,MINI Player .electrical control glass and mirror,ATM Gearbox bunk with AC.
SINOTRUK Heavy duty Muck Tipper Dump truck which suitable for public works, for carrying Muck and all kinds of construction material.Especially for public works.
It have the most production quantity, and also is the most famouse brand to abroad market.
It adopts famouse brand VOLVO truck technology.
New HOWO dump truck, High Quality , More Lighter.
Specification:
| Tipper Dump Truck 25-40Tons hydraulic cylinder for Mining and Municipal works |
| Model | ZZ3257M4347W |
| Drive Type | 6×4 |
| Engine | | WD615.62 , 266HP( Euro II) | | 6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine | | Displacement : 9.726L | |
| Cabin | HW76 lengthened cab(with one sleeper, air-conditioner and new-style seat) |
| Transmission | HW19710(10 forwards & 2 reverses) |
| Front Axle | 1×HF9 ( 9 Tons) |
| Driving Axle | HC16, 16Tons |
| Steering | ZF8118 hydraulic steering with power assistance. |
| Clutch | Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating
with air assistance |
| Rim/ Tire | 11.00R20,12.00R20,12.00R24 Radial tire |
| Wheel base | 4300+1350(mm) |
| Overall dimension | 8575×2496×3450(mm) |
| Cargo body | 6200×2300×1500(mm),Bottom:8mm, Side:6mm |
| The curb weight | 12200(Kg) |
| Gross weight | 25000 kg |
| Max. speed | 75km/h |
| Color | White, red, green, golden and so on. |
Applications:
It used for Mining industry, Construction business, docks and so on. Especially for public works.
Competitive Advantage:
1) using the high strength steel, make it has a long service life
2) strong enough engine
3) low fuel consumption
4) with all kinds of truck model, which can fulfil your requirements
5) excellant apperance of cabin, safety, reliable
6) all kinds of cargo body structure can be designed and produced according to your request,
make it have light curb weight , high rigidity , high loading capacity
7) quick and efficient spare parts supply bring you more convenient
8) fast delivery time, we can arange production according to your needs exactly and quickly
9) competive price, cost-effective
10) professional import and export dealing precedure, make customs clearance more high efficiency
11) The optimized hydraulic control system helps to avoid wrong operation, it has higher
safety and running efficiency.
12) you can choose cargo body with Front lifting type or Middle lifting type which you prefered
13) The hydraulic sytem using HYVA brand or Domestic famouse brand
Service:
Pre-service:
- Inquiry and Consulting support.
- Sample testing support.
- View our factory.
- Design various solutions as buyer's requirement.
After-sale service:
- Training how to use and maintain the truck.
- Our engineers supply the support of technology.
- 12 months warranty for 3 key spare parts(Engine,Transmission,Axle)
- Parts supply on time.
- 24 hours service and technology support.

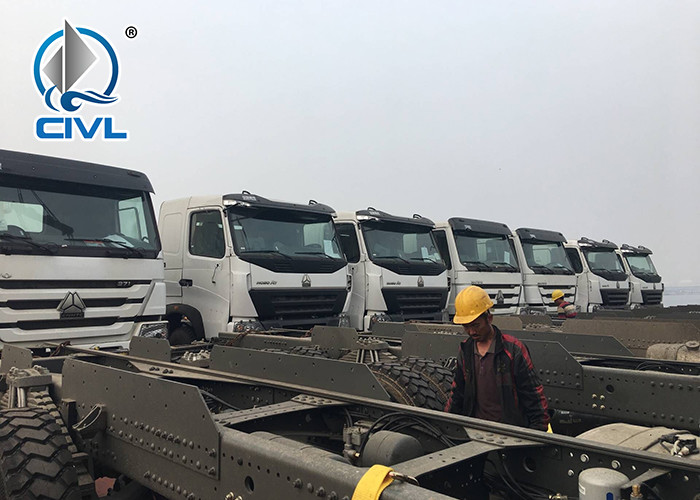

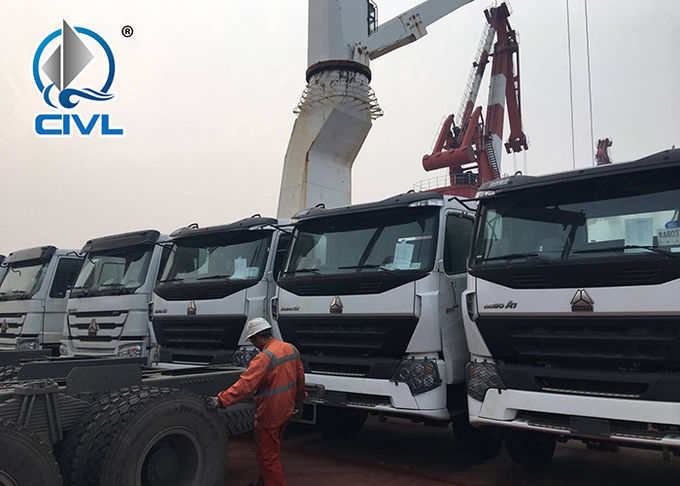

DELIVERY PHOTOS :
