LHD 6X4 SINOTRUK HOWO Tipper Dump Truck Euro 2 336HP Engine HYVA Middle Lifting

Product Categories
SINO VEHICLE & EQUIPMENT COMPANY LTD
Contact Now

LHD 6X4 SINOTRUK HOWO Tipper Dump Truck Euro 2 336HP Engine HYVA Middle Lifting

Brand Name : CIVL

Model Number : CIVL

Certification : ISO,CCC

Place of Origin : China

MOQ : 1

Payment Terms : L/C, T/T

Supply Ability : 1000 units/month

Delivery Time : Within 35 days

Packaging Details : nude

Price : Negotiable

color : White/ red/green/ blue /yellow /

material : q345

tire : triangle

lifting : middle

warranty : 1 year

Drive wheel : 6x4

Fuel type : Diesel

Condition : New

Transmission type : Manual

Capacity (load) : 21 - 30t

Horsepower : 336hp

Emission standard : Euro 2

Product name : Dumper Truck,SINOTRUK heavy duty 336HP 6x4 drive wheel HOWO dump truck

Contact Now

LHD 6X4 SINOTRUK HOWO Tipper Dump Truck Euro 2 336HP Engine HYVA middle Lifting

Description:

SINOTRUK HOWO Dump Truck Euro2 336HP LHD 10-25 CBM 30-40tons HYVA Front lifting

HOWO with ABS "front disc and drum" configuration, the vehicle stability to achieve the standard USB brake is one of the world's most high-end heavy truck, compared with drum brake which has a high speed, heavy load and high temperature characteristics when the braking efficiency is good. When the vehicle speed to 80km/h, in the end I got test track unhurried on the brake pedal, the body is not under the strong inertial force obviously did not have a front brake head and braking deviation phenomenon, but in a slow, gentle attitude slow forward.
HOWO body strength of the domestic leading position, the body uses a lot of non sharp design and flame retardant materials. Positive collision cab can instantly shift after 20cm, passive safety also did a great job.

Specification:

SINOTRUK HOWO Dump Truck Euro2 336HP LHD 10-25 CBM 30-40tons HYVA Front lifting
Model ZZ3257N3647A
Drive Type 6×4
Engine
WD615.69 , 336HP( Euro II)
6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine
Displacement : 9.726L
Cabin HW76 lengthened cab(with one sleeper, air-conditioner and new-style seat)
Transmission HW19710(10 forwards & 2 reverses)
Front Axle 1×HF9 ( 9 Tons)
Driving Axle HC16, 16Tons
Steering ZF8118 hydraulic steering with power assistance.
Clutch

Single-plate dry coil-spring clutch, diameter 430mm, hydraulically

operating with air assistance
Rim/ Tire 11.00R20,12.00R20,12.00R24 Radial tire
Wheel base 3800+1350(mm)
Overall dimension 8375×2496×3450(mm)
Cargo body 5600×2300×1500(mm),Bottom:10mm, Side:8mm
The curb weight 12200(Kg)
Gross weight 25000 kg
Max. speed 75km/h
Color White, red, green, golden and so on.

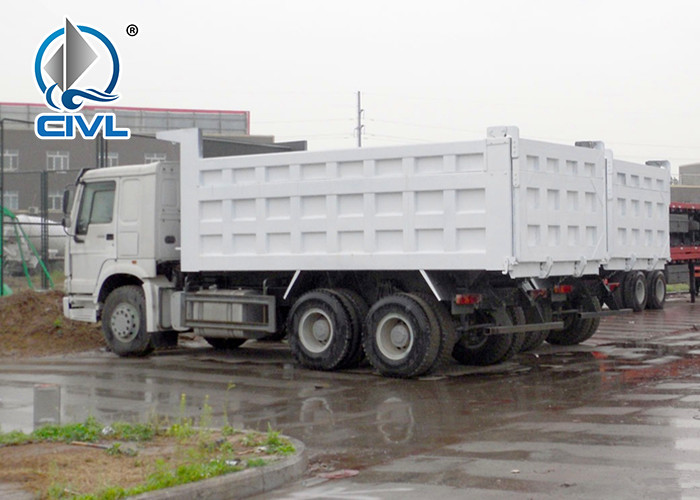

Photos:

LHD 6X4 SINOTRUK HOWO Tipper Dump Truck Euro 2 336HP Engine HYVA Middle LiftingLHD 6X4 SINOTRUK HOWO Tipper Dump Truck Euro 2 336HP Engine HYVA Middle LiftingLHD 6X4 SINOTRUK HOWO Tipper Dump Truck Euro 2 336HP Engine HYVA Middle LiftingLHD 6X4 SINOTRUK HOWO Tipper Dump Truck Euro 2 336HP Engine HYVA Middle Lifting
Applications:

It used for Mining industry, Construction business, docks and so on.

Package&Shipping:
LHD 6X4 SINOTRUK HOWO Tipper Dump Truck Euro 2 336HP Engine HYVA Middle Lifting


Quality Inspection:
LHD 6X4 SINOTRUK HOWO Tipper Dump Truck Euro 2 336HP Engine HYVA Middle Lifting
Service:


Pre-service:

  1. Inquiry and Consulting support.
  2. Sample testing support.
  3. View our factory.
  4. Design various solutions as buyer's requirement.


After-sale service:

  1. Training how to use and maintain the truck.
  2. Our engineers supply the support of technology.
  3. 12 months warranty for 3 key spare parts(Engine,Transmission,Axle)
  4. Parts supply on time.
  5. 24 hours service and technology support.
Customers' use and feedback
LHD 6X4 SINOTRUK HOWO Tipper Dump Truck Euro 2 336HP Engine HYVA Middle Lifting

Other products:

Truck series:

1. Dump trucks; cargo trucks (1-120ton)

2. Tractor trucks; (1-120 tons)

3.Tanker trucks,water tanker and oil tanker)

4. Mixer trucks and concrete pump truck

5. Mine dump trucks( 30 tons off-road mine tipper, 50tons/70tons mine dump truck, 6x6 articualted dump trucks)

6. Off-road drive trucks( 4x4. 6x6 and 8x8 Trucks)

7. Garbage trucks( garbage compactor truck, suction trucks)

8. Truck mounted cranes(normal road truck crane, truck mounted crane)

9. Special trucks( wrecker trucks, military trucks...)

10.Semi trailers( container semi-trailer, low-bed semi-trailer, tanker trailer, dumper trailer...)

11.Truck spare parts

Machine series:

1.Wheel loader,Backhoe loader

2.Roller

3.Motor Grader

4.Bulldozer

5.Excavator

6.Crane(truck crane,crawler crane,truck mounted crane,self erecting crane)

7.Forklift and 45t contain reach stacker

8.Paver and so on

9. Spare parts
