New Sinotruk Howo Dumper Truck 6x4 8x4 Tipper Lorry Sand Tipper Truck
Description:
Engine:WD615.47,4- stroke direct injection diesel engine, 6 cylinders in line with water cooling , turbo-charging and intercooling
Transmission:HW 19710,10 forwards and 2 reverse
Cab:HW76 cab, (one sleeper,with air-condition)
all-steel forward control,70ºhydraulically tiltable to the front, 2- arm windscreen wiper system with 3 speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers
Application:
It is suitable for in harsh environments, unloading and transport ore and others.
Specifications:
| Engine | Frame Specification |
| Engine type | WD615.47 | Frame(mm) | 8+8/300 |
| Emission standard | Euro II | Dimensions(mm) | 10500*2496*3450 |
| Displacement | 9.726L | Wheel base (mm) | 1800+3800+1350 |
| Rated Power / rotating | 273Kw/2200rpm | Front Suspension | 1500 |
| Maximum Torque | 1460Nm | Rear Suspension | 1670 |
| Fuel type | Diesel | Approach/Departure angel | 19/26 |
| Transmission | Axle |
| Type | HW19710 | Front axle | HR9 |
| Torque | 1900Nm | Disc Brake |
| Input power | 331Kw | Rear axle | AC16 |
| Weight | 350kg | Dump Brake |
| Oiling quantity | 14.5 | Speed ratio | 4.77 |
| Cab (HW76, mid-lengthened flat roof) |
| Equipments | One sleeping beds |
| Automatic air conditioning |
| Mechanical clerestory |
| Four point air suspension |
| Air cushioned drivers seat |
| radio with MP3 player |
| Steering system | import Steering system |
| Clutch | φ430 |
| Tire | 12.00R20 |
| Wheels number | 12+1 |

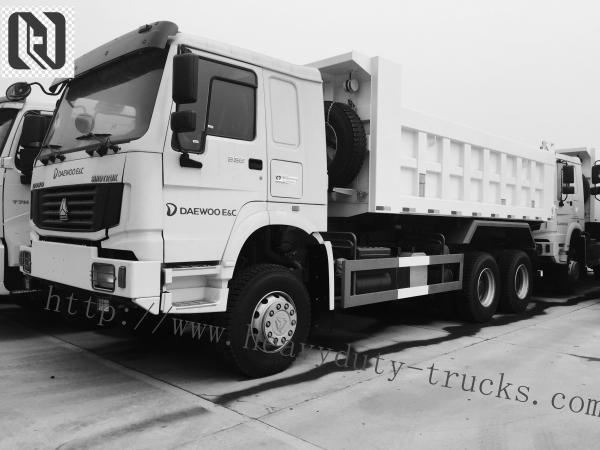

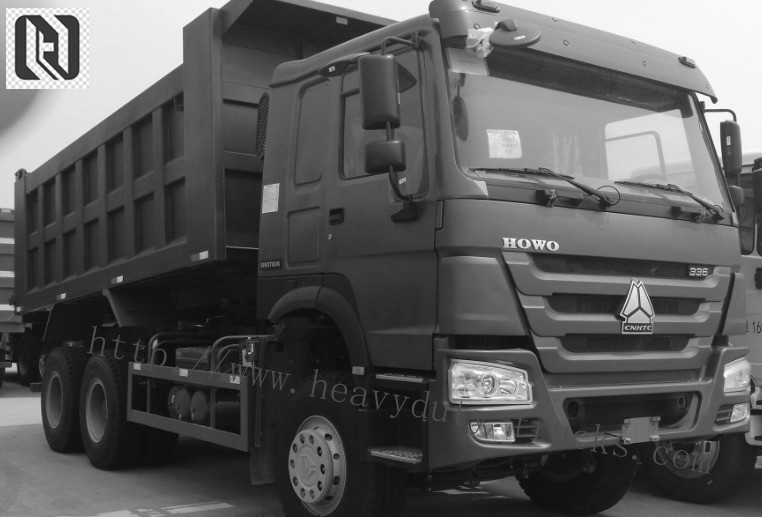

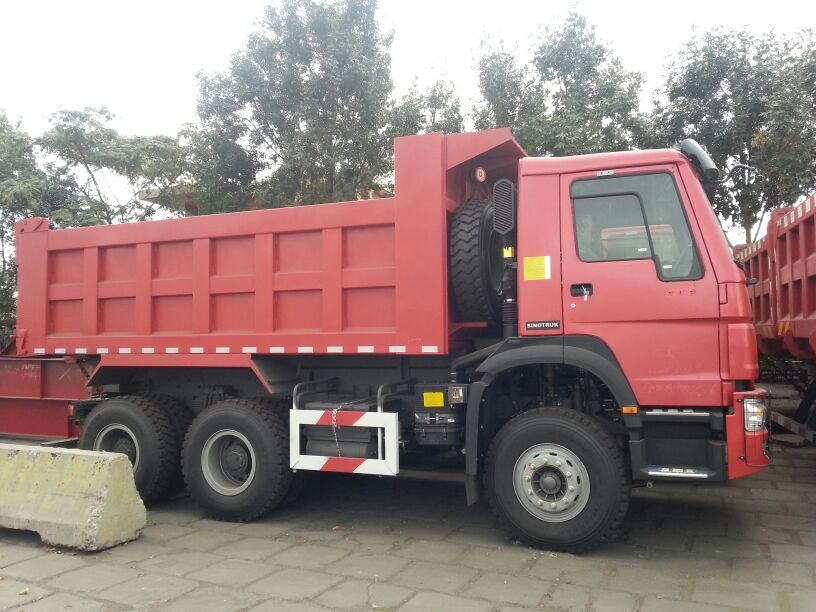

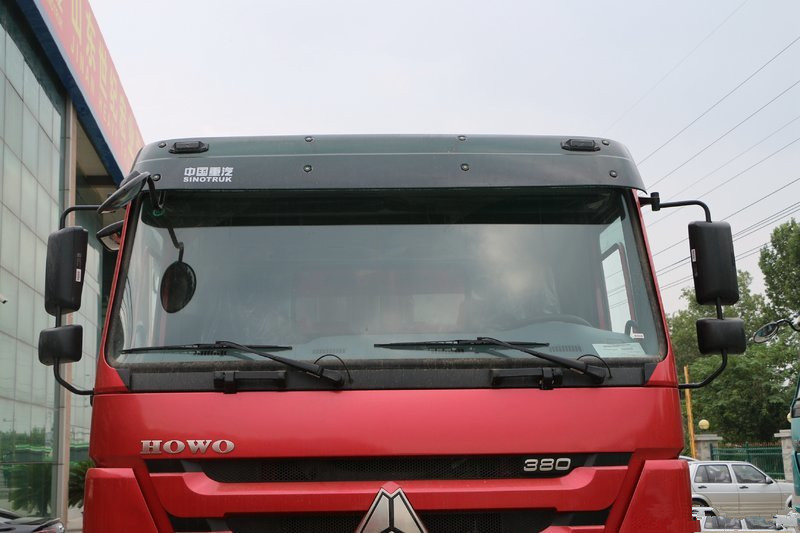

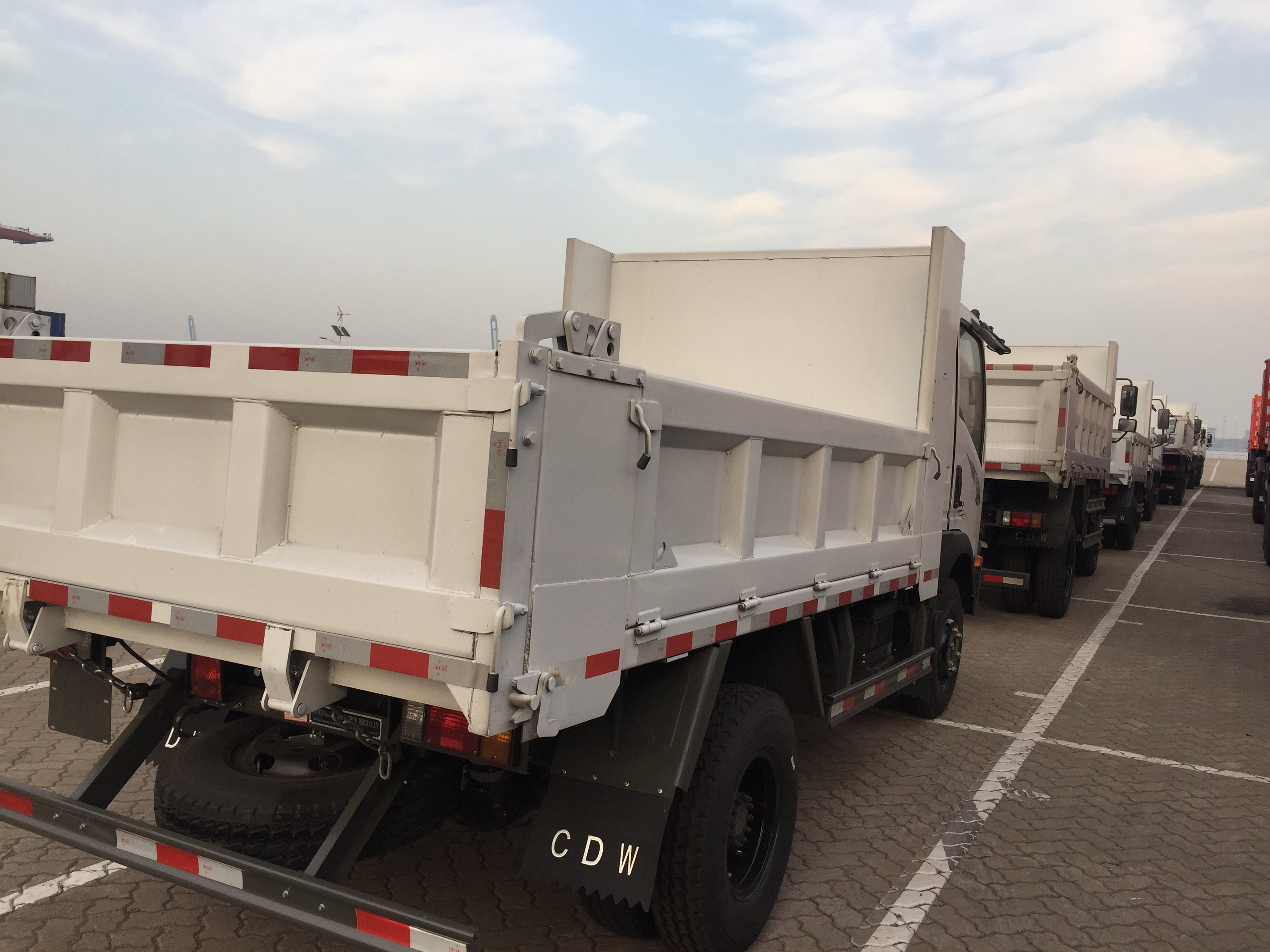

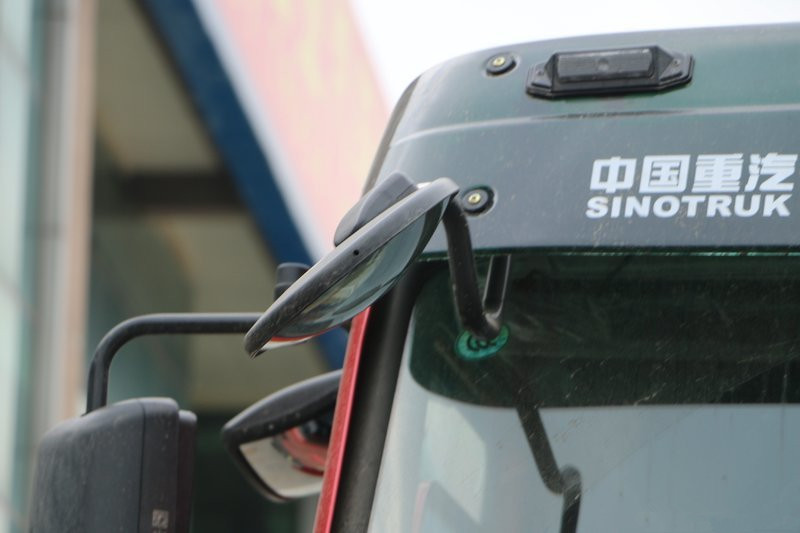

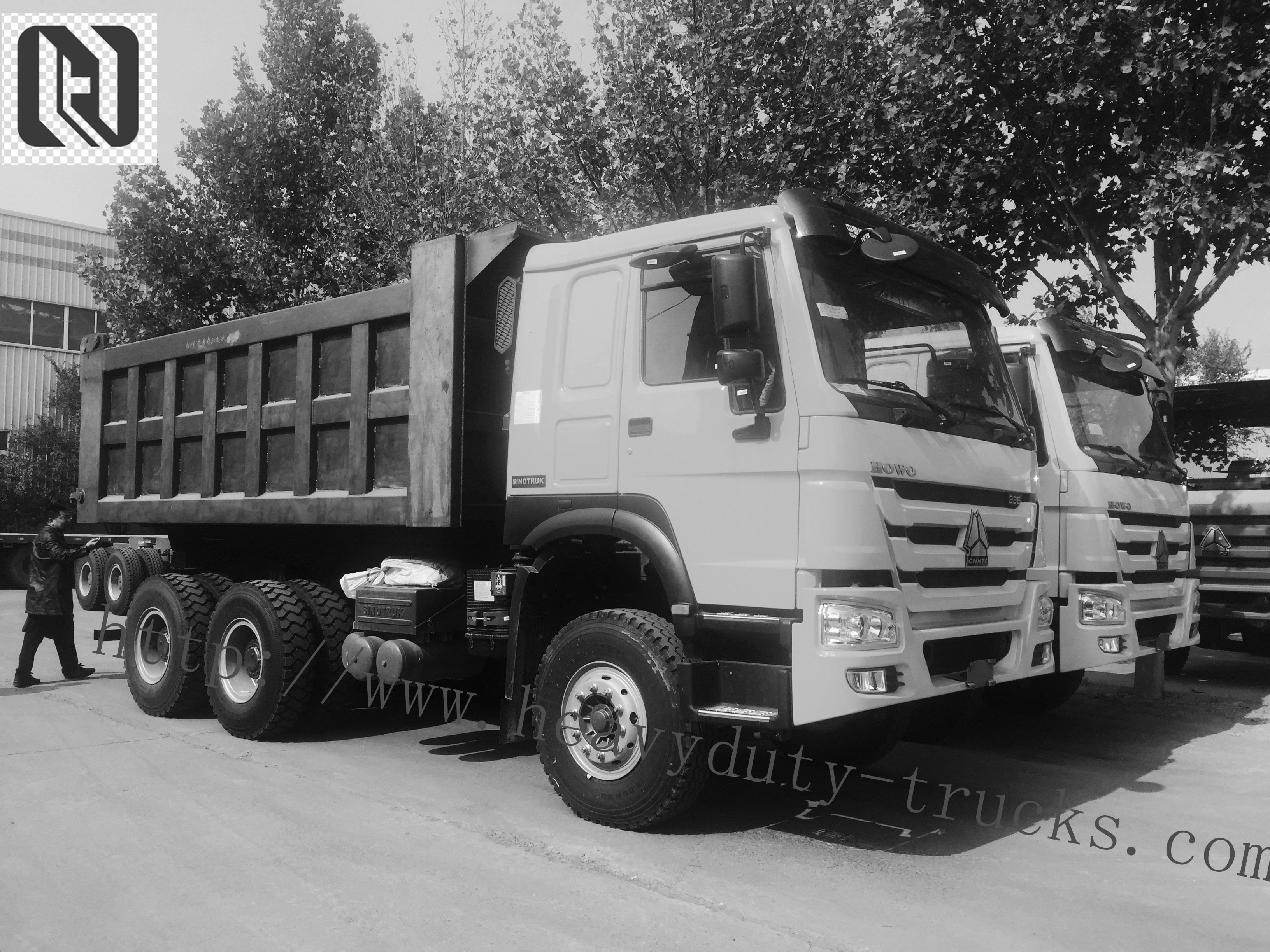

Detailed photo:
Other products:
Truck series:
1. Dump trucks; cargo trucks (1-120ton)
2. Tractor trucks; (1-120 tons)
3.Tanker trucks,( 55442753, 55083831, 55083796, 54873139, water tanker and oil tanker)
4. Mixer trucks and concrete pump truck
5. Mine dump trucks( 30 tons off-road mine tipper, 50tons/70tons mine dump truck, 6x6 articualted dump trucks)
6. Off-road drive trucks( 4x4. 6x6 and 8x8 Trucks)
7. Garbage trucks( garbage compactor truck, suction trucks)
8. Truck mounted cranes(normal road truck crane, truck mounted crane)
9. Special trucks( wrecker trucks, military trucks...)
10.Semi trailers( container semi-trailer, low-bed semi-trailer, tanker trailer, dumper trailer...)
11.Truck spare parts
Machine series:
1.Wheel loader,Backhoe loader
2.Roller
3.Motor Grader
4.Bulldozer
5.Excavator
6.Crane(truck crane,crawler crane,truck mounted crane,self erecting crane)
7.Forklift and 45t contain reach stacker
8.Paver and so on
9. Spare parts
