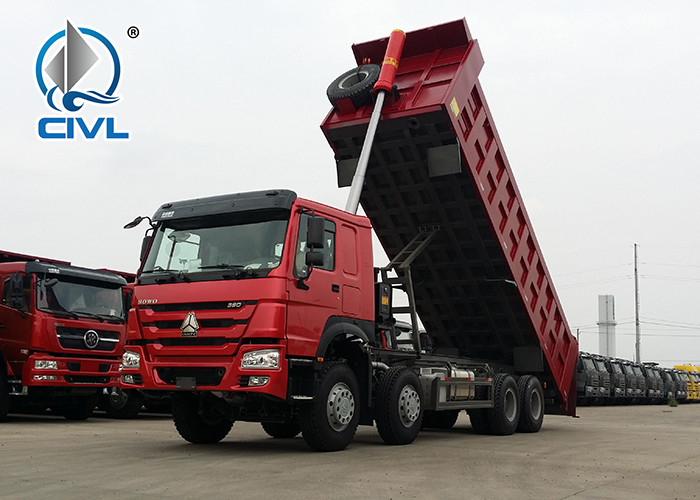

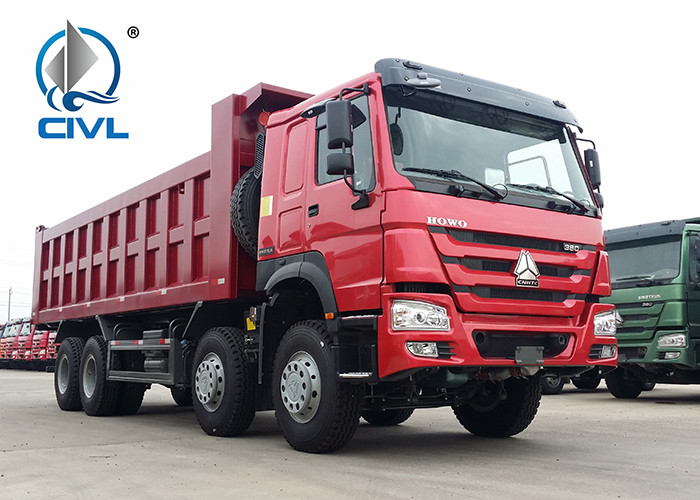

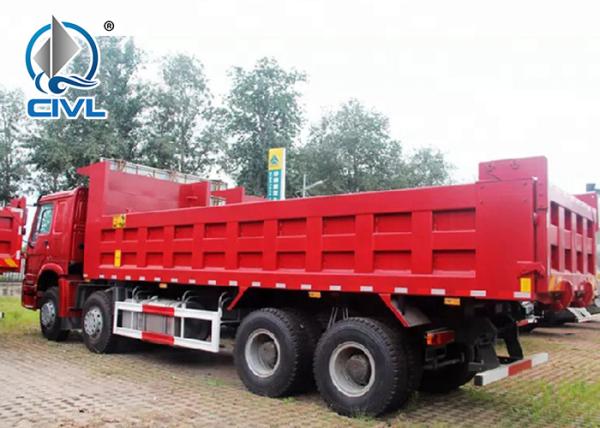

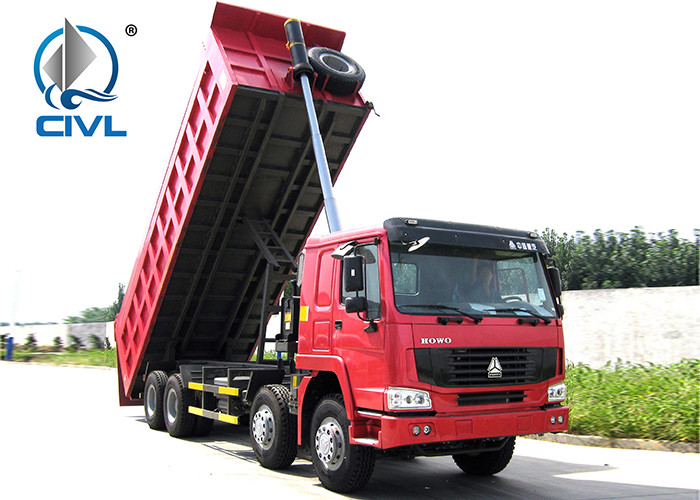

EuroIIS 20M3 Sinotruk HOWO7 336 Hp 8x4 Heavy Duty Dump Truck Front Lift HW76 Cab Tipper Truck

Name: EuroIIS 20M3 Sinotruk HOWO7 336 Hp 8x4 Heavy Duty Dump Truck Front Lift HW76 Cab Tipper Truck
Brand: CIVL
Price: 1 USD

EuroIIS 20M3 Sinotruk HOWO7 336 Hp 8x4 Heavy Duty Dump Truck Front Lift HW76 Cab Tipper Truck Manufactures

Brand Name : CIVL

Model Number : CIVL

Certification : ISO,CCC

Place of Origin : China

MOQ : 1

Payment Terms : L/C, T/T

Supply Ability : 2000units/month

Delivery Time : Within 35 days

Packaging Details : nude

Color : red

Lifting : front

tire : 12pcs

Material : Q235

Drive wheel : 8x4

Fuel type : Diesel

Condition : New

Capacity (load) : 31 - 40t

Product name : 8*4 heavy duty dump truck tipper truck

Year : 2021

Contact Now

EuroII 20M3 Sinotruk HOWO7 336 Hp 8x4 Heavy Duty Dump Truck Front Lift HW76 Cab Tipper Truck

Description:
Our HOWO dump truck has the cab that is mainly classified as HW70 standard type and HW76 lengthened type. The engine power is 266PS, 290PS, 336PS, 375PS, or others. The compartment length is 4.8 to 8.5 meters. The artificially intelligent design is the most important form to demonstrate the competitive advantage of product technology and to safeguard the interests of customers. The HOWO heavy duty vehicle employs the Chinese-original artificially-intelligent technology, which has reached the international level.

Applications:
It is suitable for in normal roads and tough roads, to transport and unload transport, stone, ore, and others loose materials.

Specification

Truck Model					ZZ3317N2867W-1
Truck Brand					SINOTRUK –HOWO
Driving Type					Left Hand Drive
Dimension(Lx W xH)(unloaded)(mm)					11145x2496x3450
Cargo body size (LWH, mm)					8200x2300x1500 28.3m3
Cargo body thickness(mm)					bottom:8mm, side:4mm
Lift type of Carriage					Front Lift
Approaching angle/Departure angle(°)					19/24
Overhang(front/rear) (mm)					1500/1895
Wheel base (mm)				1800+4600+1350
Max speed(km/h)				80
Curb weight(kg)				15440
Total weight(kg)				50000
Fuel tanker capacity(L)				300L or 600L
Fuel consumption(L/km)				20-40 L/100 km
Clutch				Single-plate dry clutch Φ430mm
Engine Model ( technology, made in China)	Fuel type			Diesel
	Horse Power, max(kw/rpm)			336HP
	Emission			EURO II
	Model			WD615.69
Transmission		Model		HW19710
Brake system		Service brake		Dual circuit compressed air brake
		Parking brake		spring energy, compressed air operating on rear wheels
		Auxiliary brake		Engine exhaust brake
Steering system		Model		ZF8118 hydraulic steering with power assistance
Front axle		HF9, Steering with double T-cross section beam Loading capacity: 9000kg
Rear axle		HC16, Pressed axle housing, central double reduction with differential locks between axles and wheels Loading capacity:13000kg Ratio:3.93/4.42/4.80/5.73
Color		Optional
Tire		12.00-20
Tire quantity		12+1 spare=13 tires
Electrical system		Battery	2X12V/165Ah
		Alternator	28V-1500kw
		Starter	7.5Kw/24V
Cab		HOWO76 cab, one sleeper with air-condition, all-steel forward control,55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers

EuroIIS 20M3 Sinotruk HOWO7 336 Hp 8x4 Heavy Duty Dump Truck Front Lift HW76 Cab Tipper Truck

Competitive Advantage
1 Rich Experience in sale of the Sinotruk’s heavy equipment & truck.

2 Expert in kinds of heavy trucks and spare parts.

3 Personalized customization to meet your working requirements.

4 High quality of Original parts & OEM services.
