High Torque Heavy Duty Dump Truck With Air Suspension Short Flat Cab

Name: High Torque Heavy Duty Dump Truck With Air Suspension Short Flat Cab
Brand: CIVL
Price: 1 USD

High Torque Heavy Duty Dump Truck With Air Suspension Short Flat Cab Manufactures

Model Number : CIVL

Certification : ISO,CCC

Place of Origin : China

MOQ : 1

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 6000 units per week

Delivery Time : Within 35 days

Packaging Details : Nude

Brand Name : CIVL

Name : Heavy Duty Dump Truck

Truck type : ZZ3257M3857A

Operating voltage : 24Vnegative grounded

Axle : STR

Starter : 24V,5.4KW

Tire : 1200R20

Contact Now

High Torque Heavy Duty Dump Truck With Air Suspension Short Flat Cab

Heavy Duty Dump Truck Description:

Heavy Duty Dump Truck Engine
High strength/ high rigidity/ long life block: vermicular cast iron body, similar strength cast steel, similar heat dissipation potential gray iron, strong anti-thermal deformation, high cost, can be adopted in few high end engines in the world due to its core technology.
1). Good economy: high-explosive pressure and optimized injection and combustion system, ensuring its low specific oil consumption at a wide range of sppds, Minimum specific oil consumption is 186/kwh.
2). Low nose: noise reaches the international level.
3). High-integration: volume of spare parts reduced 25% compared with the similar products in the world, highly reducing the failure points.

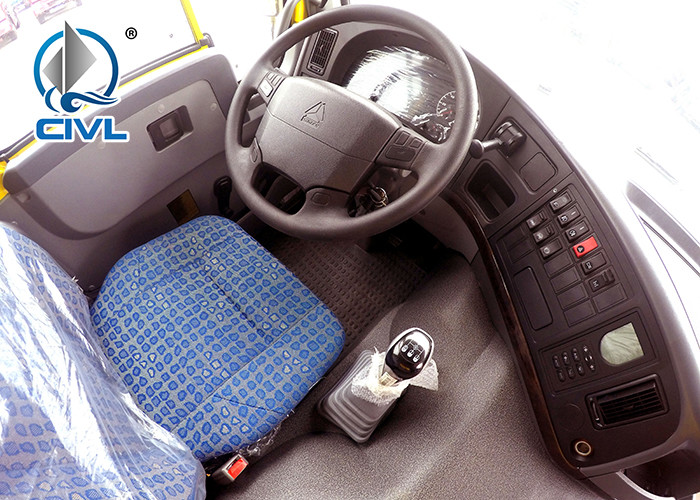

Heavy Duty Dump Truck Cabin
1). All the bodies adopt integral steel-framed structure, hard and firm, allowing high collision resistance and external force resistance.
2). Cab manufactured by the welding line composed by international advanced robots, safety and reliable top-level quality in China.
3). Automatic painting line consisting of robots ensuring the body appearance quality, corrosion prevention and weather resistance, increasing the effective more than 2 times compared to the conventional electrophoresis painting and allowing higher salvage value of vehicle.
4) Each safety performance index completely meeting the latest legal requirements of China , comprehensively enhancing the safety.

Heavy Duty Dump Truck Specifications:

Model	6x6 dump truck Based on using STR technology
Axle(front/rear)
Front axle	9T STR technology non-driving steering axle
Tandem	16T STR technology double reduction, hub redactor driving axle
Clutch	D430 diaphragm type, single dry frictional disc, hydraulic boosting
Brake	Service brake: Double circuit pneumatic brake
	Parking brake: Spring-Power drum brake
	Engine brake: Engine exhaust brake (EVB)
Steering	ZF8118, driver sit at the Left hand side, RHD is optional
Electric Equipment
	Operating voltage:	24Vnegative grounded
	Starter:	24V,5.4KW
	Alternator	28V,758W
	Battery voltage	12V/135Ah, cigar lighter
Frame	Strengthen steel frame, designed according to tough road condition.
Tyre	10+1 spare tyre with rim
	12.00-20 bias tyre
Suspension system: Strengthen heavy duty Leaf spring type
	Front/Rear	10/12

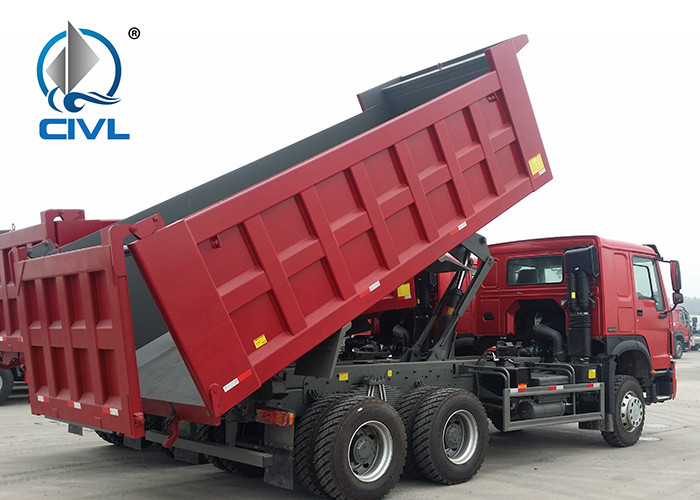

Dump body: type of body :
Inside size of Body(mm): 5170x2300x1500, 8x6mm (thickness of floor and rail of the dump body)
Lifting type: HYVA front lifter type hydraulic system
Overall dimension(mm): 11868x2496x3250 (Length x width x height)
Wheelbase	3800+1400mm
Curb weight:	12190kg

High Torque Heavy Duty Dump Truck With Air Suspension Short Flat Cab

Product Tags:

heavy duty trucks

commercial box truck

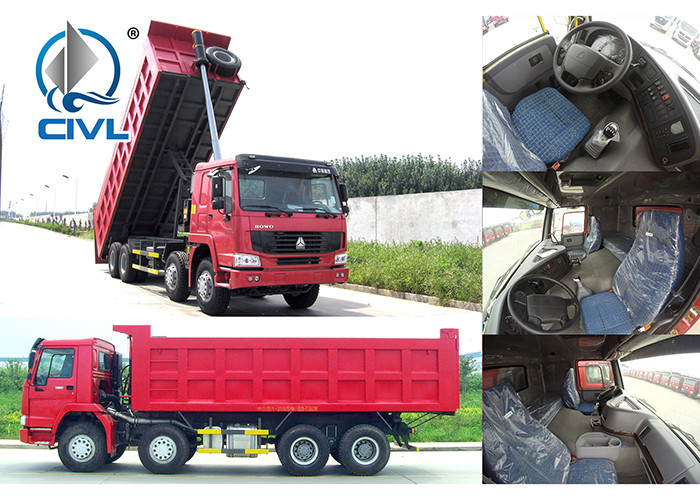

High Torque Heavy Duty Dump Truck With Air Suspension Short Flat Cab Images
