Q235 material Sinotruk CDW 4x2 3T Heavy Duty Dump Truck / Mini Tipper Truck

Name: Q235 material Sinotruk CDW 4x2 3T Heavy Duty Dump Truck Mini Tipper Truck
Brand: CIVL
Price: 1 USD

Q235 material Sinotruk CDW 4x2 3T Heavy Duty Dump Truck / Mini Tipper Truck Manufactures

Brand Name : CIVL

Model Number : CIVL

Certification : ISO,CCC

Place of Origin : China

MOQ : 1

Payment Terms : L/C, T/T

Supply Ability : 200units/month

Delivery Time : Within 35 days

Packaging Details : nude

material : Q235

color : option

emission : 2

warranty : 1

Contact Now

Sinotruk CDW 4x2 3T tipper dumper truck in dubai sinotruk mini tipper truck

GVW Driving Type 4x2
Model		CDW3040
Cab		CDW one and half cab
Engine(Hp)		116
Power(Kw)		85
Wheelbase		3200
Front/Rear Suspension		1750/1645
Steering		Power steering
Approach/departure angle		24/23
Wheels & tire		8.25R16
Tire number		6+1
Tank Dimensions(mm)		3600×2100×800
Cubage (m3)
Steel thickness		Side 3 ,Bottom 4
RHD or LHD		optional
Overall Dimensions(mm)		5900×2300×2600
Curb weight (Kg)		2600
Engine	Model	YN33CRE1
	Horsepower	116
	Maximum output Kw	85
	Maximum torque N.m	315
	Type	4 cylinders, in-line, diesel engine
	Displacement	3.298L
	Yunnei brand, Euro 5
Driving passenger	2
Transmission	5 speed forward and one reverse, manual
Front Axle	2T
Rear Axle	3.5T
Brake System	Oil brake
Color and LOGO	customized
Electric system	24V
Standard configuration	The dump is unloaded from behind, hydraulic cover is optional. The side protection using cold-formed steel /Q235-A, bolt connection. The back protection using cold-formed steel /Q235-A, welding connection. Side 3mm, bottom 4mm.
Delivery date	Within 20 days after receipt advance
Packing	Nude Pack .The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity.

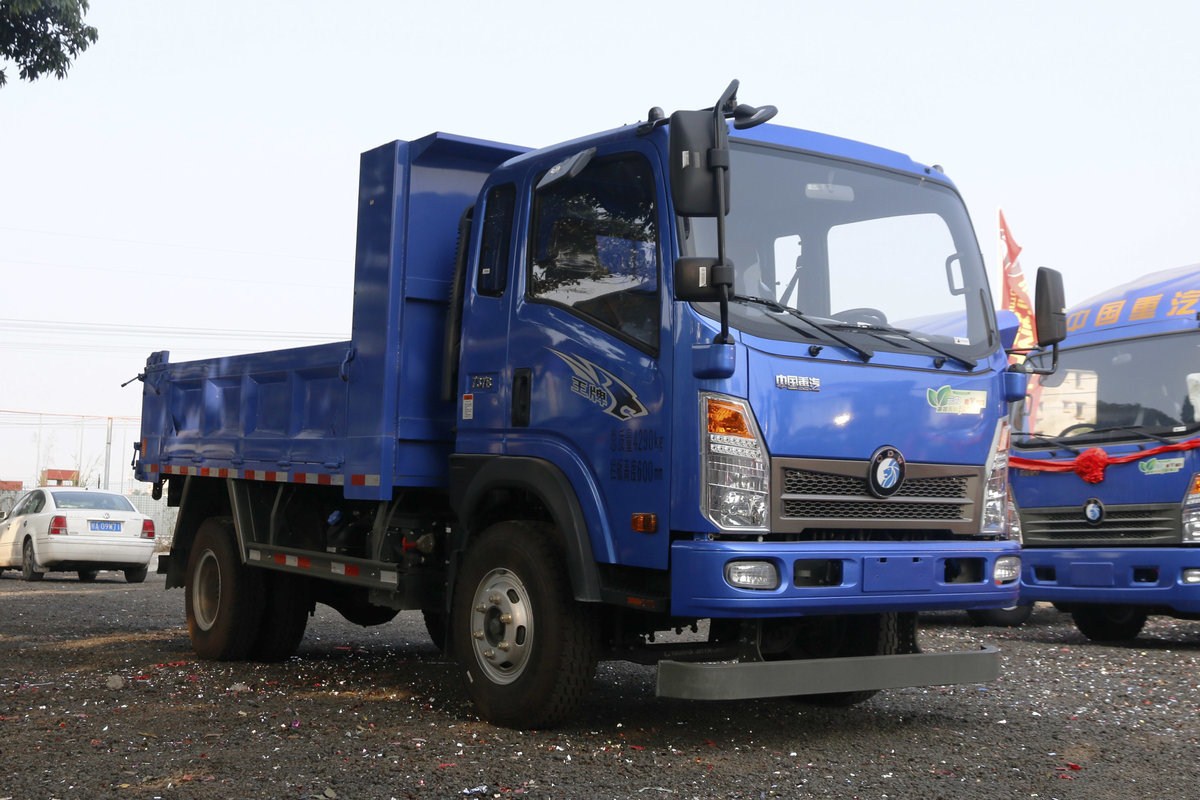

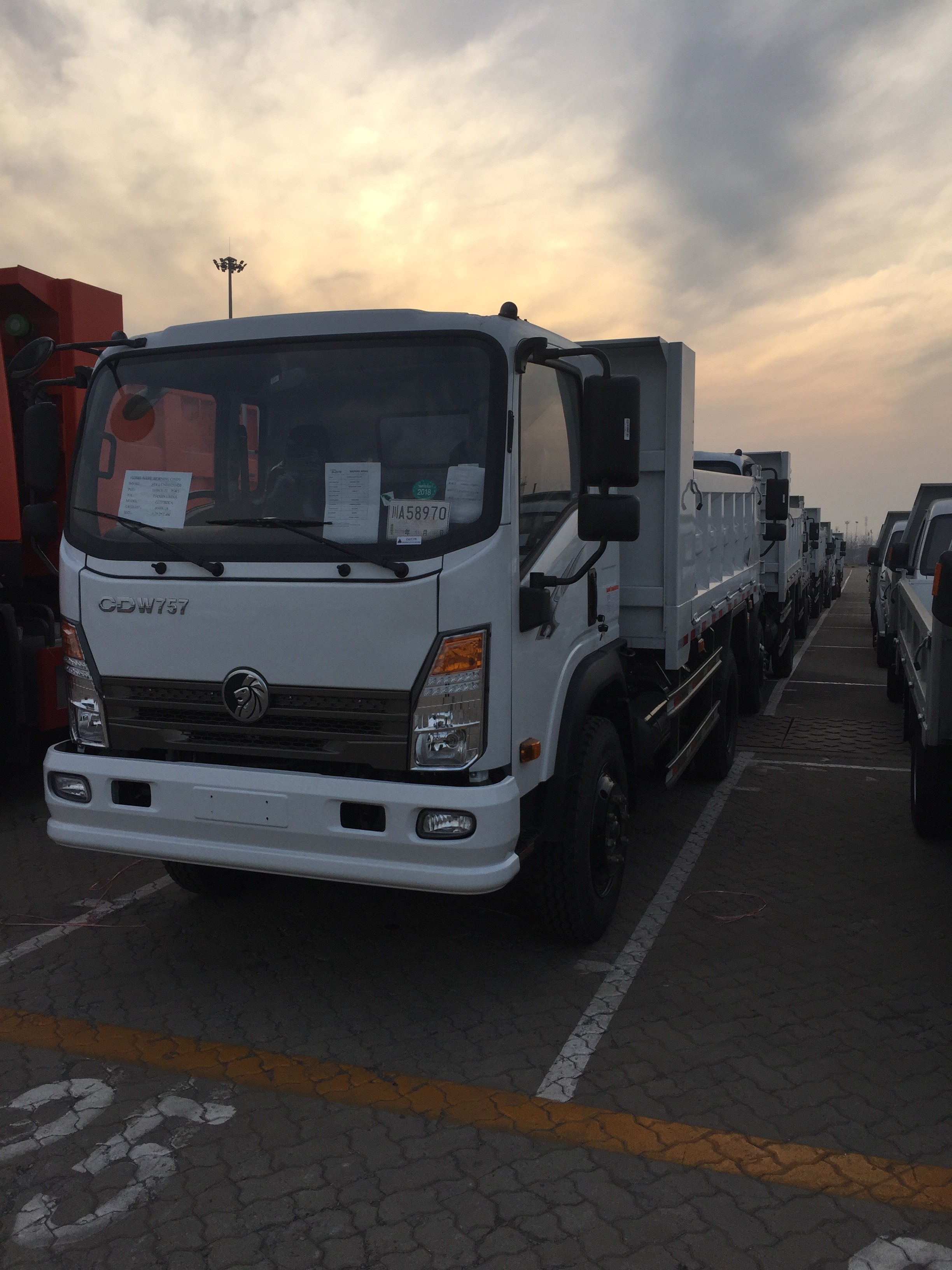

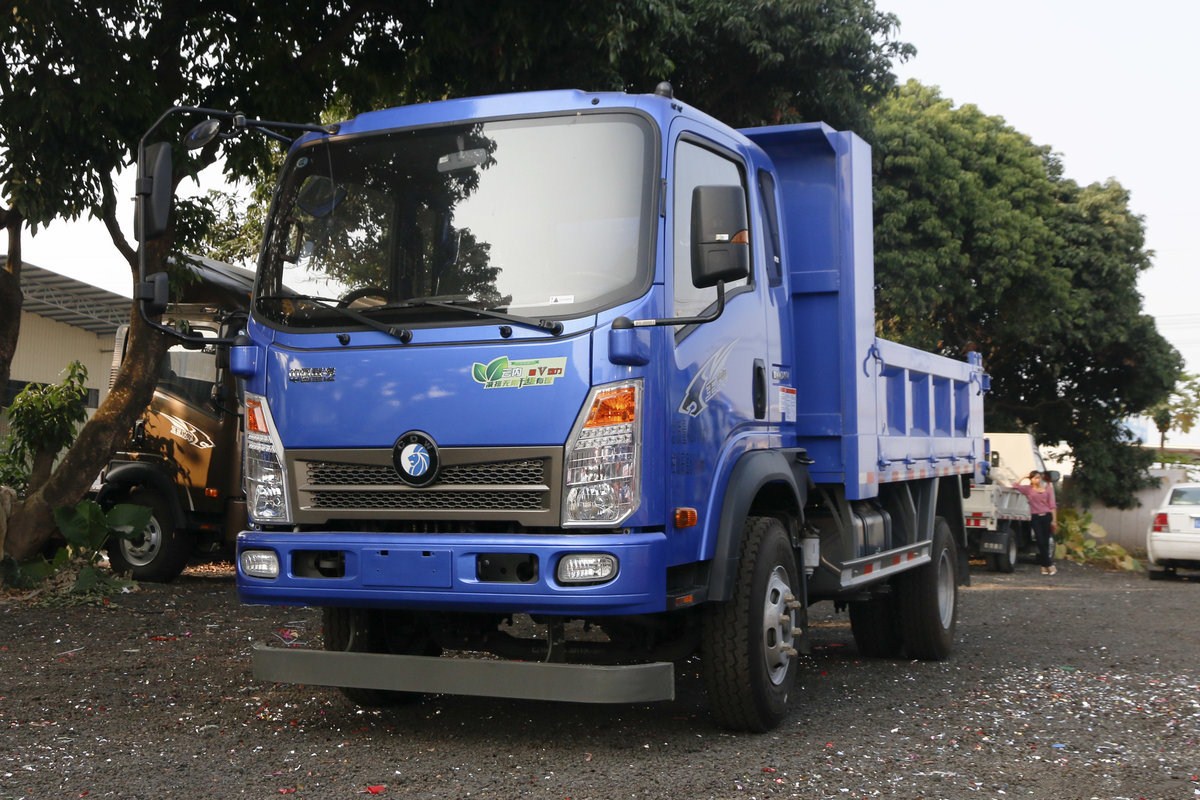

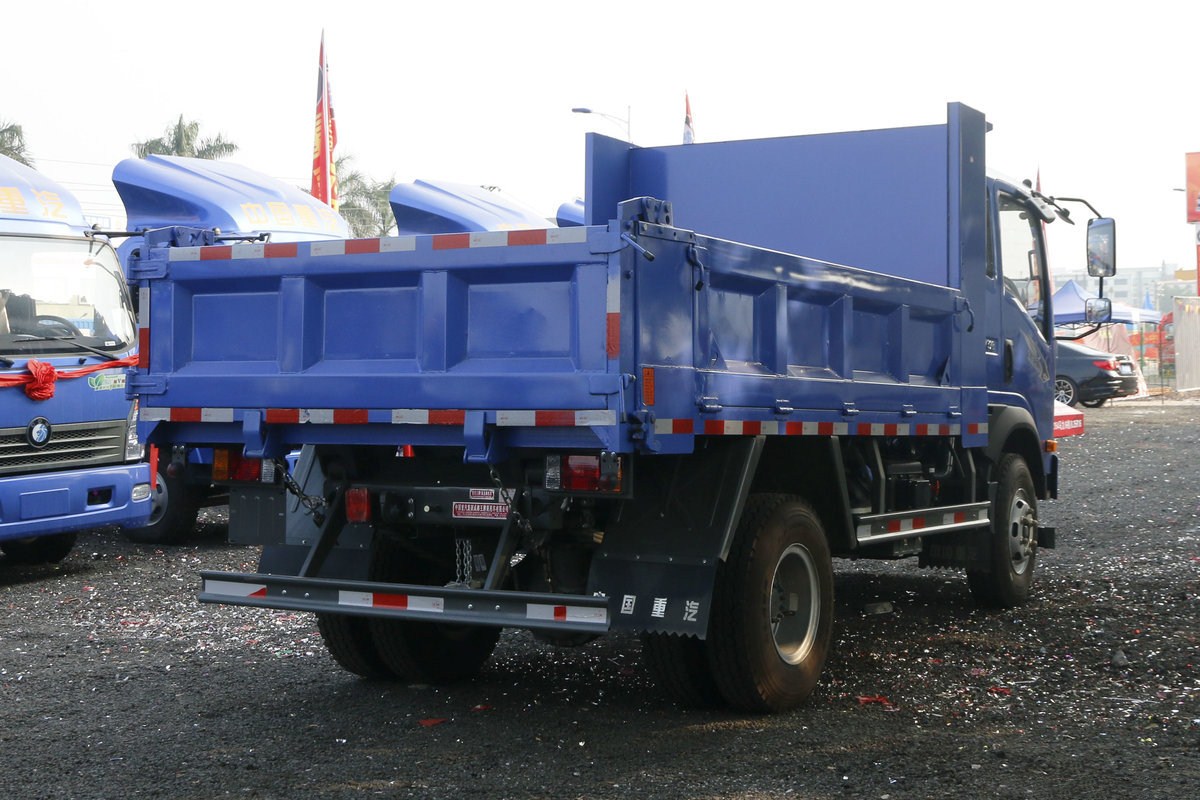

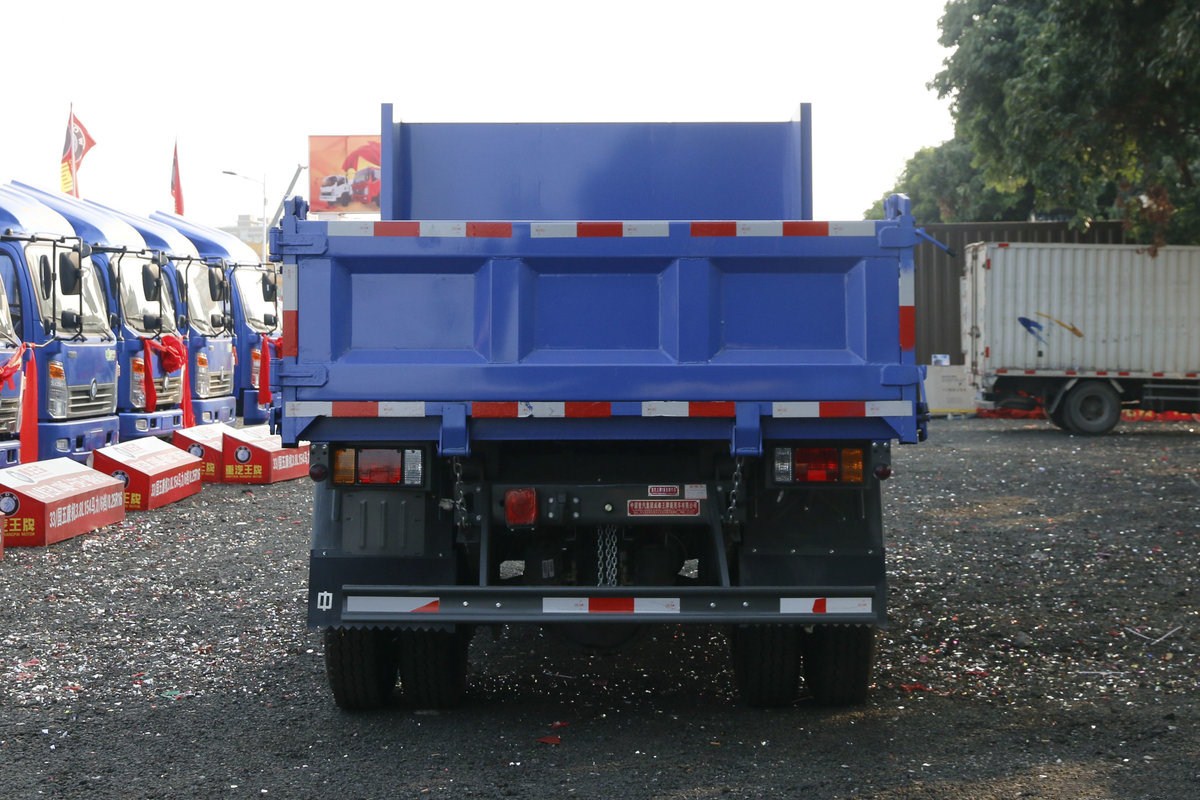

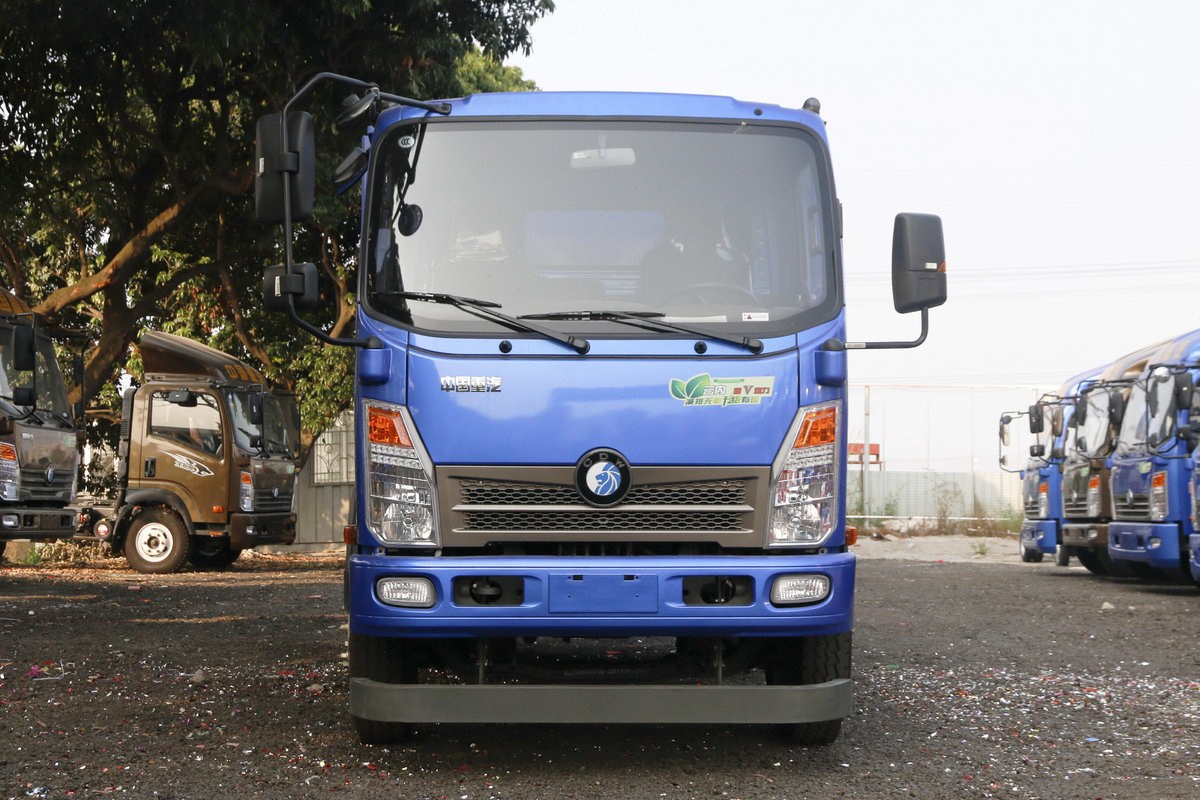

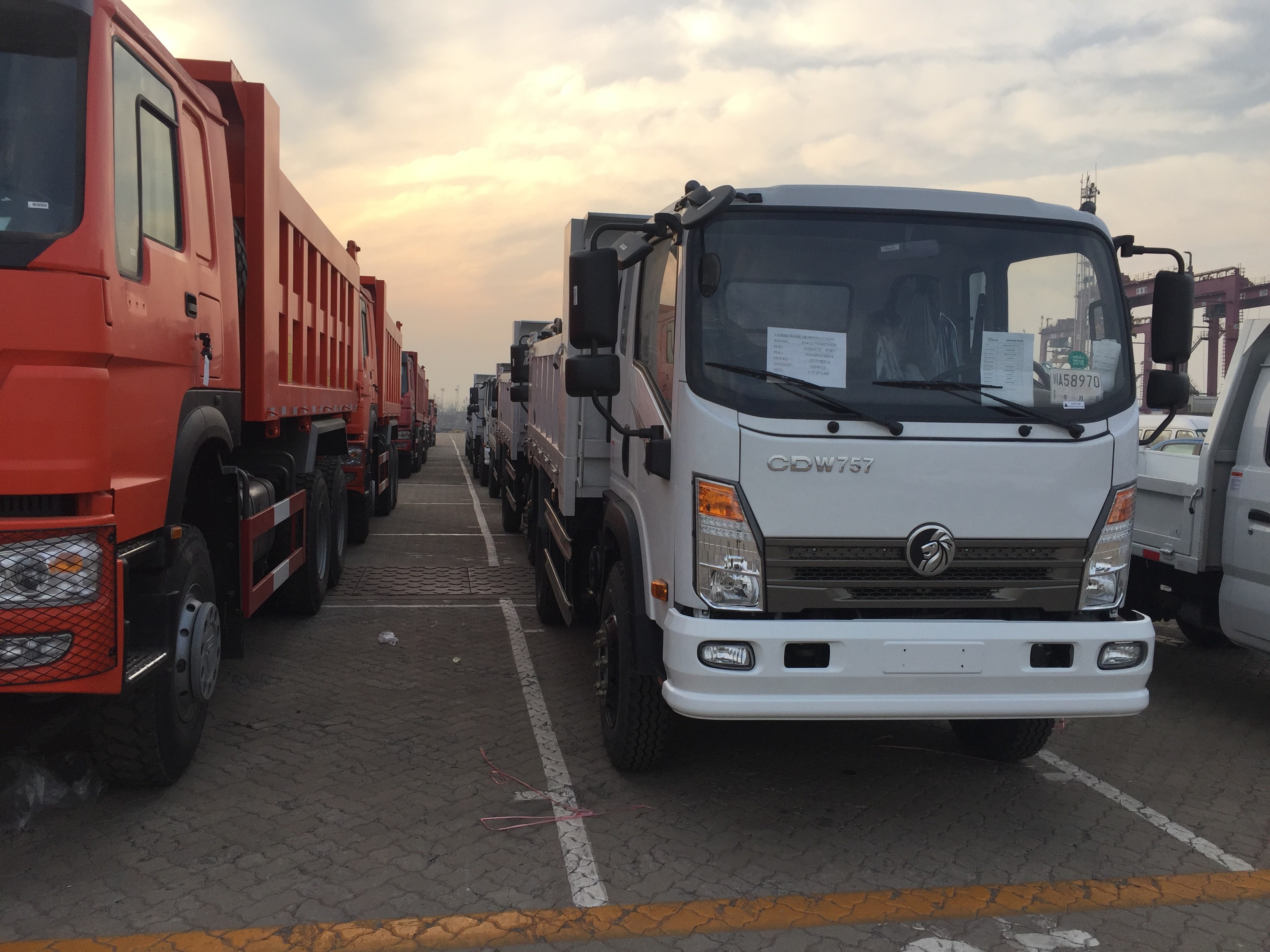

Detailed Images

Q235 material Sinotruk CDW 4x2 3T Heavy Duty Dump Truck / Mini Tipper Truck

Truck series:
1. Dump trucks; cargo trucks (1-120ton)
2. Tractor trucks; (1-120 tons)
3.Tanker trucks,( water tanker and oil tanker)
4. Mixer trucks and concrete pump truck
5. Mine dump trucks( 30 tons off-road mine tipper, 50tons/70tons mine dump truck, 6x6 articualted dump trucks)
6. Off-road drive trucks( 4x4. 6x6 and 8x8 Trucks)
7. Garbage trucks( garbage compactor truck, suction trucks)
8. Truck mounted cranes(normal road truck crane, truck mounted crane)
9. Special trucks( wrecker trucks, military trucks...)
10.Semi trailers( container semi-trailer, low-bed semi-trailer, tanker trailer, dumper trailer...)
11.Truck spare parts
Machine series:
1.Wheel loader,Backhoe loader
2.Roller
3.Motor Grader
4.Bulldozer
5.Excavator
6.Crane(truck crane,crawler crane,truck mounted crane,self erecting crane)
7.Forklift and 45t contain reach stacker
8.Paver and so on
9. Spare parts
