3Axles/4Axles Double -Function Flatbed Trailer For Tansporting Containers Or Goods
The vehicle body,made of high qualified steel Q235, T700 optional.
Frame girder structure, made of Q345 steel, T700 , SSAB high stress steel optional.
Independent steel plate stamping type rigid suspension, air suspension optional.
Pls Notice: this is for your consideration only
Actual datas depend on your actual requst!
Specifications
| Basic Information |
| Model | 3 Axle Double-Function Fladbed Trailer |
| Overall Dimension (L*W*H) | 13000*2500*1600mm |
| Carriage Dimension(L*W*H) | 12800*2360*550 mm |
| Curb Weight | 6000 KG |
| Total Weight | 39900KG |
| Axle | 3*13000KG FUWA |
| Rated Loading capacity | 35000KG |
| Wheelbase | 6780+1310+1310mm |
| King-pin size | 3.5inch, heigth from earth 1600mm 90# |
| Wheel Base | 3225mm +1350mm |
| Tires | 11.00R22.5 tire |
| Landing Gear Brand | Jost |
| Brake System |
| Air Reservoir | 40L |
| Emergency relay valve | Jiwei |
| Air-chamber | Four double and two single |
| Main Structure |
| Upper wing plate | 18mm with 16MN steel |
| Low wing plate | 20mm with 16MN steel |
| Main beam heigth | 530mm |
| Baseboard | 3mm thickness steel plate |
| Light |
| 7 wire harness 24V LED light |

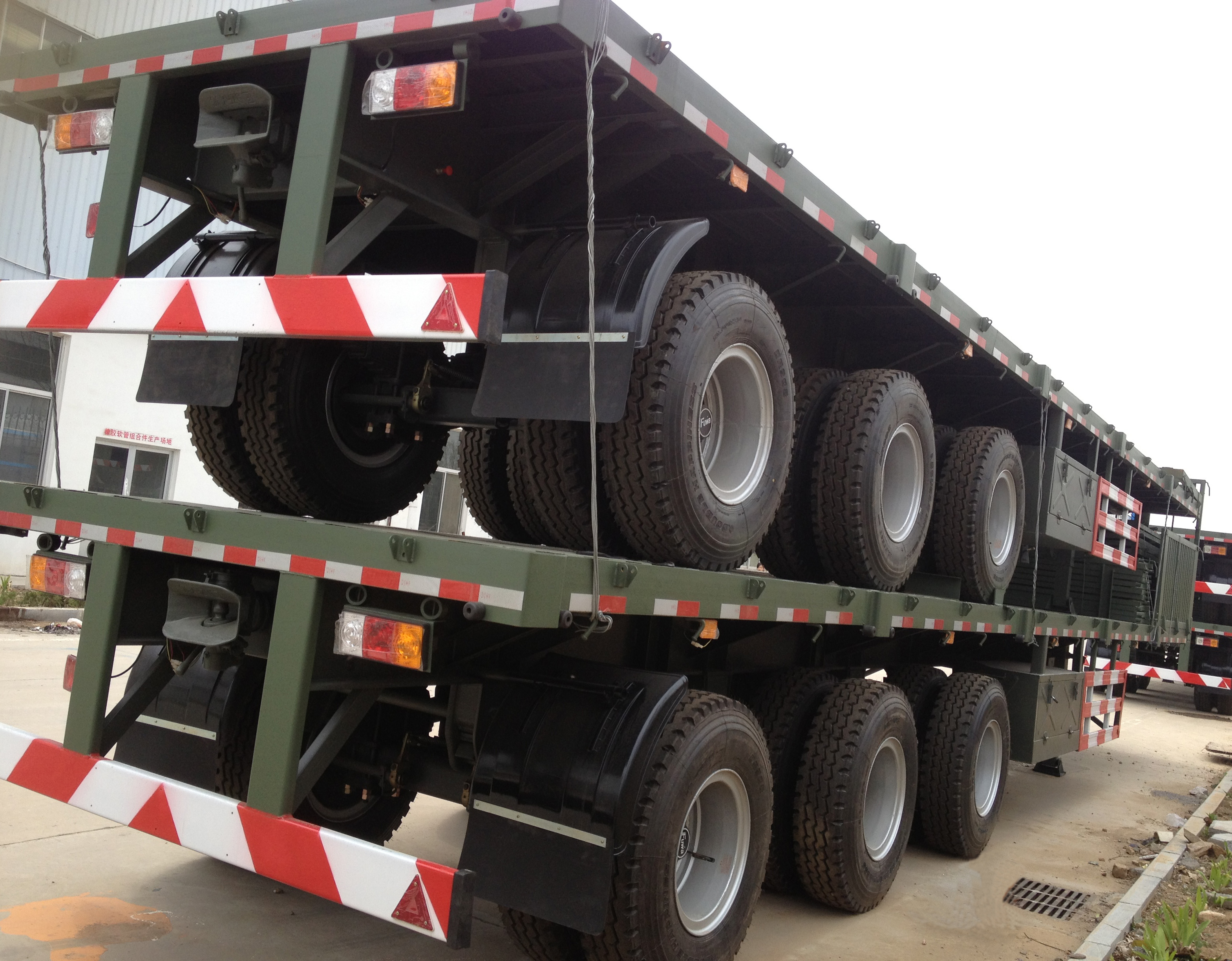

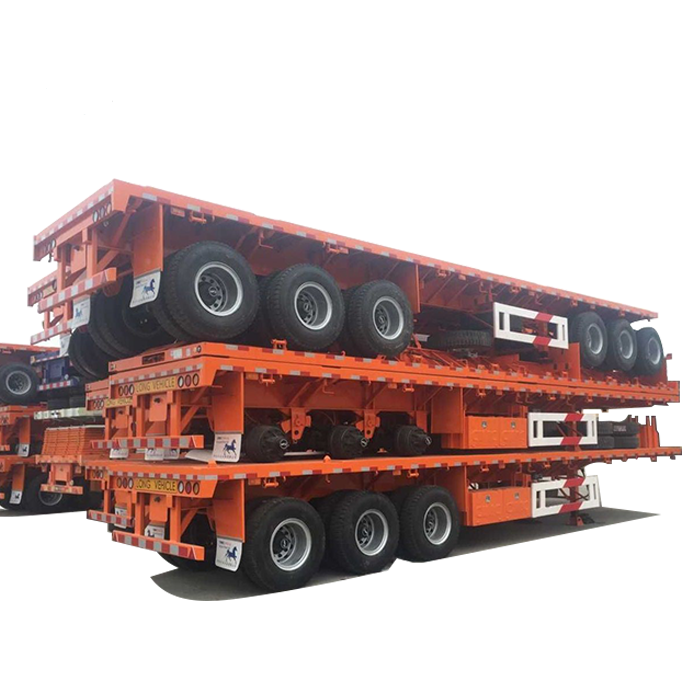

Photos
Other Truck can be provide according to your request, freely contact me for the informations and quotations.
