Blue Light Duty Commercial Trucks With Crane Wheelbase 5200 Mm

Brand Name : CIVL

Model Number : CIVL

Certification : ISO,CCC

Place of Origin : China

MOQ : 1

Payment Terms : L/C, T/T, L/C, T/T

Supply Ability : 1000 sets / every month

Delivery Time : Within 35 days

Packaging Details : In nude

Price : negotiable

Brand : HOWO

Color : Optional

Emission : EURO Ⅳ

Approach/departure angle : 27/20

Front wheel track : 1886

Rear wheel track : 1845

Contact Now

Truck with crane's Main features as below

Vehicle name: Truck with crane
Vehicle type: Special vehicle
Vehicle model: SHMC5164JSQB
Engine model YC4E140-42 Engine power 103
YC4E160-42 118
Engine displacement 4260 Engine manufacturer Guangxi yuchai machinery co., LTD
4260
Fuel type: Diesel
Overall dimension(L/W/H): 8995×2498×3785 Box(L/W/H): 5850×2400×600
Total weight(Kg): 15795
Curb weight(kg): 8570 Permitted capacity(kg): 7030
9570 6030
8852 6748
9057 6543
Front passenger(Persons): 3
Approach/departure angle: 27/20 Front/rear overhang: 1240/2555
Wheelbase(mm): 5200 Axel load: 5850/9945
Axel nos: 2 Max.drive speed (km/h): 95
Oil consumption: 26.2,26.3 Spring nos: 8/10+8,9/12+9,9/11+7,11/12+9
Tyre nos: 6 Tire type: 9.00-20,9.00R20
Front wheel track: 1886 Rear wheel track: 1845
Steering mode: Steering wheel
Chassis standard: GB17691-2005EUROⅣ,GB3847-2005
Identification code: LZZ1BBFH×××××××××

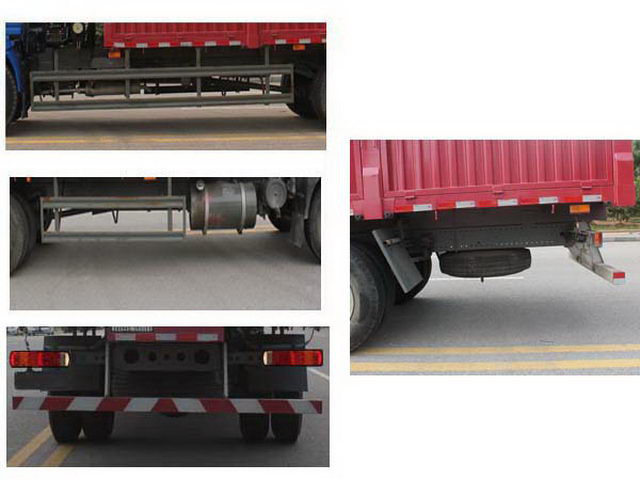

Others: The model can option half high bridge, high bridge, dome.The left and the right protective device is installed in the left and right longitudinal beam, material for steel Q235-2, connecting method for bolt connection;after bottom is connected with main frame , material for steel Q235-5, connecting method for bolt connection, the sectional dimensions
is (width x height) :100mmx100mm.The height of the lower edge is 450 mm from the ground.The vehicles installed with GPS function running recorder. there is a one-to-one correspondence between the crane model and the rated lifting crane quality and weight one-to-one correspondence, crane model is respectively: QYS - 5 Ⅱ, QYS - 6.3 Ⅲ, ST174-063, SQ6.3 SK3Q;Rated lifting quality respectively: 5000 kg, 6300 kg6300kg, 6300;Crane weight (kg), respectively: 2000 kg, 3000 kg, 2282 kg, 2487 kg. there is also a one-to-one correspondence between the loaded quality and the whole equipment’s quality .the model of the ABS system is XH - KQ4S4M - E01, produced by guangzhou xihe automobile electronic equipment co., LTD.Fuel consumption to declare a value of the Engine YC4E140-42 and YC4E160-42 are 26.2L/100kmand 26.3L/100km,respectively.
