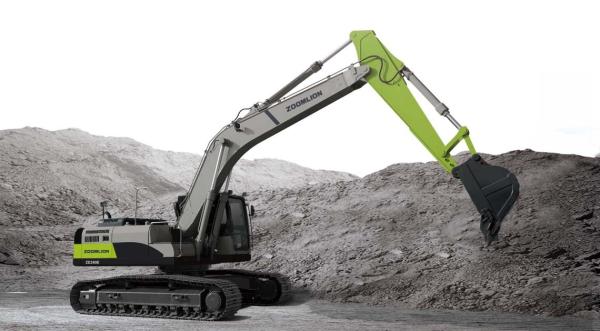

ZE260E Enhanced Equipment Hydraulic Cylinder Excavator Structural Parts

Product Categories

SINO VEHICLE & EQUIPMENT COMPANY LTD

Contact Now

Name: ZE260E Enhanced Equipment Hydraulic Cylinder Excavator Structural Parts
Brand: CIVL
Price: 1 USD

Brand Name : CIVL

Model Number : CIVL

Certification : ISO,CCC

Place of Origin : China

MOQ : 1

Working mass : 24500kg

Rated power : 133/2000 kw/rpm

Standard bucket capacity(SAE) : 1.2m3

Engine model : Cummins B5.9-C(178hp)

Delivery Time : Within 35 days

Contact Now

Strong excavating forces of arm and bucket,making heavy-load operation easier and complete machine more efficient.

	Item	Unit	ZE260E
Key Parameter	Working mass	kg	24500
	Rated power	kw/rpm	133/2000
	Standard bucket capacity(SAE)	m3	1.2
	System flow (Max. pressure/ Max. flow)	-	32.4/35.3 Mpa 2×220 L/min
	Engine model	-	Cummins B5.9-C(178hp)
	Max. torque	N.m/rpm	708/1500
	Traveling speed (low/high)	km/h	3.1/5.6
	Slewing speed	rpm	11.2
	Gradeability°	°	35°
	Max. drawbar pull	kN	215
	Digging force of bucket (ISO)	kN	173
	Digging force of stick (ISO)	kN	125
Basic Parameter	Slewing radius of tail	mm	2920
	Tail length	mm	2890
	Counterweight ground clearance	mm	1050
	Min. ground clearance	mm	453
	Ground contact length	mm	3840
	Track length	mm	4640
	Track gauge	mm	2590
	Track width	mm	3190
	Track shoe width	mm	600
	Height of grouser	mm	26
	Slewing table width	mm	2720
Operating Range	Max. excavating radius	mm	10190
	Max. excavating distance	mm	10010
	Max. excavating height	mm	10000
	Max. discharging height	mm	7080
	Max. excavating depth	mm	6870
	Max. vertical excavating depth	mm	5880
	Min. slewing radius of front	mm	3410
