SY16 Lower Fuel Hydraulic Crawler Excavator Wide Applications In Narrow Spaces

Name: SY16 Lower Fuel Hydraulic Crawler Excavator Wide Applications In Narrow Spaces
Brand: CIVL
Price: 1 USD

SY16 Lower Fuel Hydraulic Crawler Excavator Wide Applications In Narrow Spaces Manufactures

Brand Name : CIVL

Model Number : CIVL

Certification : ISO,CCC

Place of Origin : China

MOQ : 1

Engine rated Power : 11.2/2400 kW/rpm

Engine model : 3TNV74F/3TNV70

Engine displacement : 0.993/0.854 L

Overall weight : 1750 kg

Arm digging force : 9.2 kN

Bucket digging force : 15.2 kN

Delivery Time : Within 35 days

Contact Now

Transport length3575 mm

Transport width980/1350 mm

Transport height2420 mm

Std. track shoe width230 mm

Track gauge750/1120 mm

Min. ground clearance180 mm

Tail swing radius920 mm

Roller gauge1225 mm

Max. digging height3665 mm

Max. dumping height2635 mm

Max. digging depth2360 mm

Max. vertical digging depth2215 mm

Max. digging reach4000 mm

Min. swing radius1655 mm

Engine model3TNV74F/3TNV70

Engine rated Power11.2/2400 kW/rpm

Engine displacement0.993/0.854 L

Overall weight1750 kg

Bucket capacity0.04 m3

Bucket digging force15.2 kN

Arm digging force9.2 kN

Travel speed (high/low)3.7/2.1 km/h

Swing speed10 rpm

Gradeability58%/30°

Ground pressure29.1 kPa

Fuel tank capacity23 L

Arm length1130 m

Bulldozer Blade - width*heigh1350×270 mm

Bulldozer blade - raise/lower310×320 mm

Hyd tank capacity21 L

Boom length1810 m

SY16 Lower Fuel Hydraulic Crawler Excavator Wide Applications In Narrow Spaces

DORIN (Ms)

1:mail : roadmachine@road-machine.com

2:Tel : 86+13210589366

3:Skype : 008613210589366

4:The company :SINO VEHICLE&EQUIPMENT COMPANY LTD

Product Tags:

compact excavator

hydraulic excavator

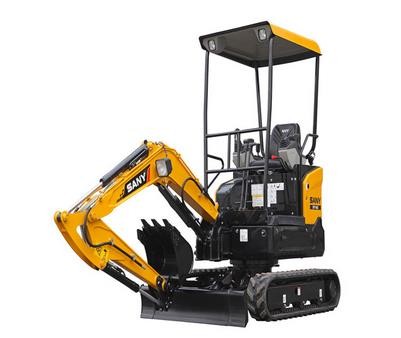

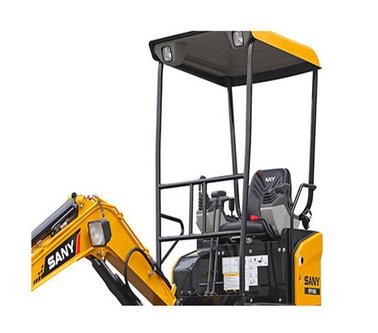

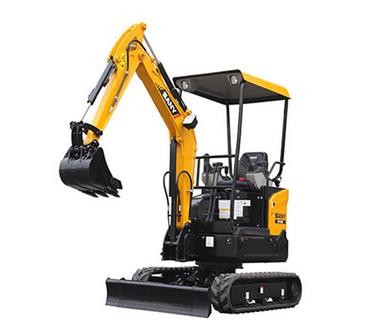

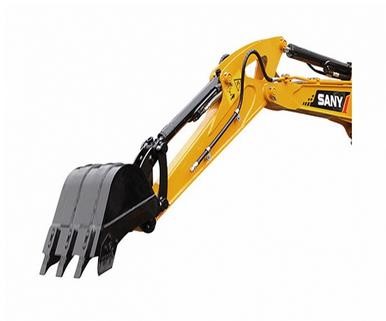

SY16 Lower Fuel Hydraulic Crawler Excavator Wide Applications In Narrow Spaces Images
