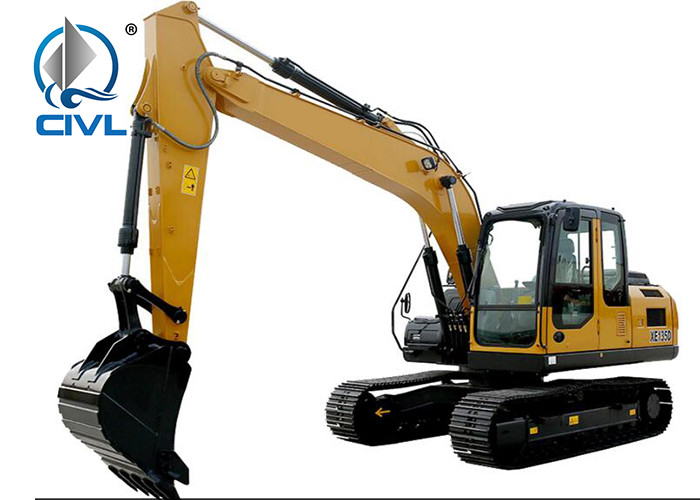

Mini excavator machinery XCMG 13T excavator XE135D
The advanced XCMG intelligent management system for XCMG excavators; a comfortable and safe new cab; low-speed high-torque high-pressure common-rail engine, new power matching mode, and increased power...
Bucket capacity (m³): 0.32-0.61
Engine rated power (kW/rpm): 86/2200
Bucket digging force (kN): 99.1
Specification :
| | Unit | XE135D |
| Operation weight | Kg | 13800 |
| Bucket capacity | m3 | 0.4-0.52 |
| rotated power | kw/rpm | 69.6/2200 |
| output | L | 4.329 |
| Travel speed | km/h | 5.16/3.03 |
| Swing speed | r/min | 12.3 |
| Max.gradeability | ° | 35 |
| Ground Pressure | kPa | 42 |
| Bucket digging force | kN | 85 |
| Arm crowd force | kN | 65 |
| Max traction force | kN | 134 |
| Fuel tank capacity | L | 250 |
| Hydraulic tank capacity | L | 130 |
| Engine Lubrication | L | 14 |
| A Overall length | mm | 7770 |
| B Overall width | mm | 2512 |
| C overall Weight | mm | 2880 |
| Doverall width of upperstructure | mm | 2512 |
| E Track width | mm | 3660 |
| F overall width of undercarriage | mm | 2590 |
| G Standard track shoe width | mm | 500 |
| Htrack length on ground | mm | 2910 |
| I Track gauge | mm | 1990 |
| J Clearance under counter weight | mm | 964 |
| K Ground clearance | mm | 478 |
| L Tail swing radiu | | 2294 |
| A Max digging height | mm | 8641 |
| B Max dumping height | mm | 6181 |
| C Max digging depth | mm | 5538 |
Advantage:
More energy saving and environmental protection
1, designed for excavator tailored cummins engine, satisfy the three emissions standards, low speed high torque, low noise, low fuel consumption;
2, a new generation of international famous brands of key hydraulic components, combined with the latest research results, more efficient, more accurate control, higher quality and reliability, to ensure the long-term reliable strong digging force and excellent efficiency;
3, a new generation of microcomputer control technology, precise control of engine fuel injection time and injection volume, make the engine always run in the best economic area, ensure the machine under various operating states always maintain the best efficiency and economy.
Product selling point
Advanced XCMG intelligent management system XEICS;
New comfortable and safe cab;
Low-speed, high-torque, high-pressure common-rail engine, new power matching mode, improved power utilization and fuel economy;
Maintenance is convenient and fast, and the maintenance period of the engine filter element is extended;
The strengthened slewing mechanism conforms to more coordinated action, less impact and longer life.
Remarks: This product is continuously improved with technological progress. The differences between the parameters and structural characteristics listed above and the actual product shall prevail.
